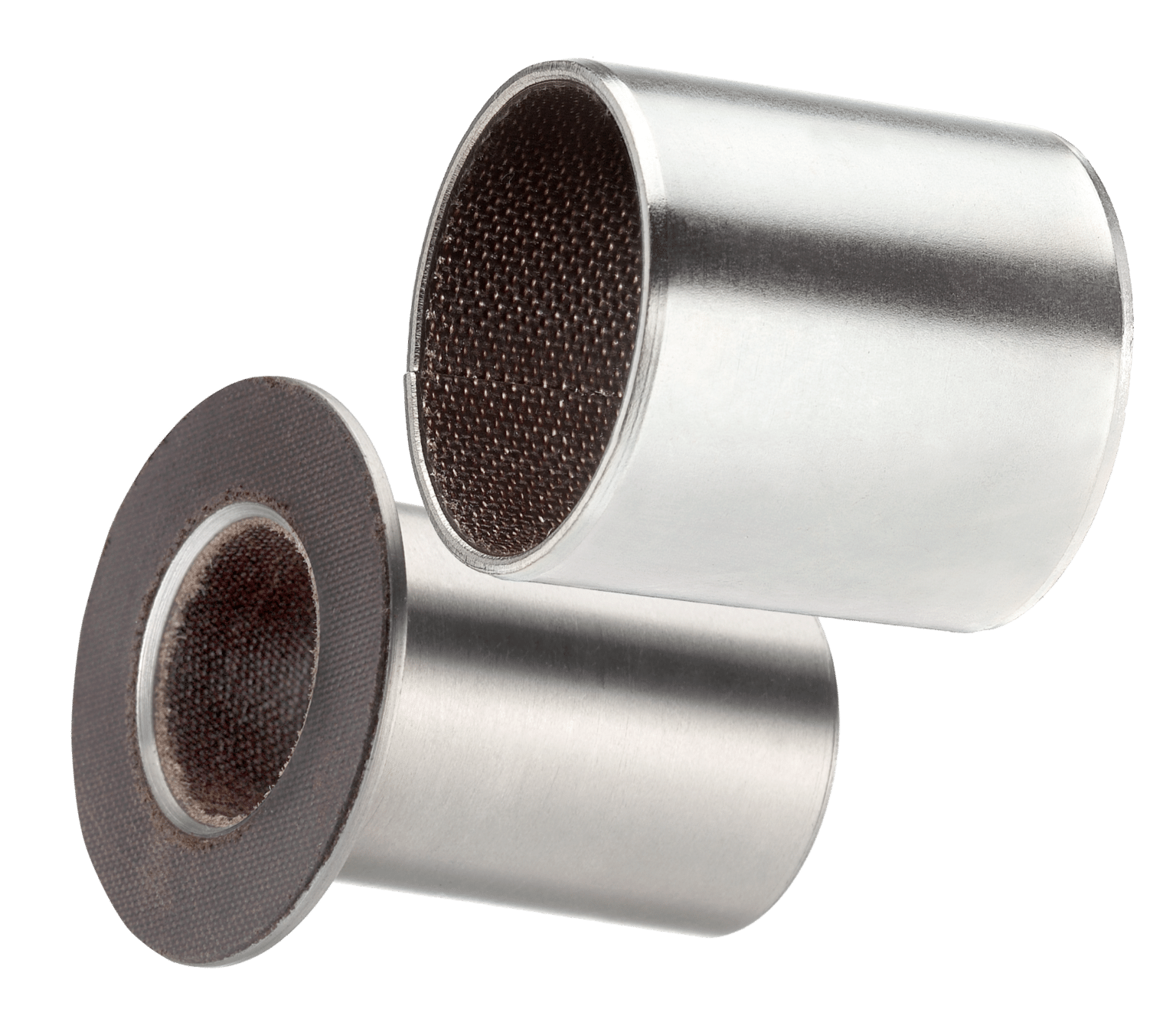

Bearing fabrics address unique design issues, such as zero stick-slip, high compression and/or temperature resistance, self-lubrication, coefficient of fiction limitations, and other features. STERN EWS bearing fabrics can often be found in applications including jet engine bearings, seismic protection bearings, spherical bearings, journal bearings, and linear isolation bearings. Customizable options, from yarn content and thickness to friction coefficient and strength, make STERN EWS's bearing fabrics highly versatile. Based on the coefficient of friction and environmental protection requirements, nearly any fiber or fiber combination can be used to create this material.
Bearing Fabrics
Click on the arrows to sort each parameter.
| Pattern Name | Weight oz/sq yard | Thickness (in) | Air Permeability (CFM) | Warp Tensile Strength (lbs) | Filling Tensile Strength (lbs) | Warp Thread Count (per in.) | Filling Thread Count (per in.) | Weave |
|---|---|---|---|---|---|---|---|---|
| 15586 | 2 | 0.0051 | 108 | 71 | 72 | 96 | 101 | Plain |
| 15688 | Plain | |||||||
| 15782 | 3.4 | 0.0093 | 112 | 136 | 135 | 71 | 66 | Plain |
| 15783 | 5.8 | 0.012 | 105.6 | 263 | 122 | 64 | 36 | Satin |
| 15850 | 4.5 | 0.0075 | 66.9 | 204 | 90 | 56 | 50 | Satin |
| 16245 | 5.66 | 0.0014 | 96.5 | 191 | 107 | 65 | 76 | Satin |
| HT326 | 6.7 | 0.0132 | 13.5 | 241 | 173 | 98 | 46 | Plain |
| HT327 | 9.1 | 0.0136 | 8.2 | 261 | 247 | 104 | 70 | Twill |
| HT328 | 10 | 0.0152 | 6 | 244 | 287 | 102 | 76 | Chain |
| HT368 | 7.4 | 0.0128 | 25.8 | 241 | 241 | 104 | 79 | Twill |
| HT443 | 9.1 | 0.0153 | 20.9 | 226 | 271 | 104 | 69 | Twill |
| HT458 | 12.1 | 0.0192 | 6.4 | 227 | 309 | 109 | 57 | Satin |
| HT459 | 12.6 | 0.0175 | 4 | 230 | 290 | 97 | 46 | Satin |
| HT478 | 8.4 | 0.0155 | 26.8 | 233 | 220 | 106 | 66 | Satin |
| HT500 | 6.45 | 0.0123 | 73.7 | 252 | 230 | 104 | 68 | Twill |
| HT513 | 9.09 | 0.0157 | 103 | 253 | 215 | 104 | 43 | Satin |
| HT527 | Satin | |||||||
| T026 | 13.5 | 0.0183 | 22.2 | 185 | 72 | 148 | 108 | Satin |
| T027 | 15.3 | 0.0207 | 75.9 | 156 | 290 | 138 | 98 | Satin |
| T028 | 12.6 | 0.0175 | 58.2 | 247 | 110 | 142 | 95 | Satin |
| T029 | 12.8 | 0.0147 | 14 | 217 | 141 | 145 | 104 | Satin |
| T080 | 24.3 | 0.0251 | 20.7 | 220 | 388 | 148 | 84 | Satin |
| T081 | 22.1 | 0.0264 | 75 | 205 | 318 | 146 | 44 | Satin |
| T082 | 29 | 0.0292 | 35.2 | 198 | 575 | 144 | 60 | Satin |
| T127 | 5.8 | 0.0117 | 379.2 | 90 | 60 | 52 | 65 | Plain |
| T234 | 12 | 0.0206 | 121 | 150 | 200 | 140 | 96 | Satin |
| T271 | 9.1 | 0.0157 | 45.8 | 127 | 217 | 160 | 128 | Satin |
| T299 | 13.2 | 0.0143 | 3.7 | 149 | 110 | 145 | 76 | Satin |
| T465 | 10.7 | 0.0186 | 2.8 | 466 | 180 | 76 | 77 | Satin |
| T490 | 6.5 | 0.007 | 20.2 | 194 | 90 | 75 | 68 | Plain |
| T493 | 24.2 | 0.0316 | 33.4 | 324 | 819 | 222 | 135 | Satin |
| T508 | 6.57 | 0.0119 | 97.5 | 133.8 | 166.8 | 160 | 128 | Satin |
| T518 | 9.79 | 0.0162 | 122.8 | 198.6 | 132 | 141 | 98 | Satin |
| T521 | 21 | 0.0229 | 15.3 | 206 | 482 | 47 | 80 | Satin |
To specify, simply contact us with your application details, preferred yarn content, width, volume, and delivery specifics. You can also browse our fabric and materials catalog. STERN EWS is eager to answer any question regarding our fabrics, capabilities and precision services.
